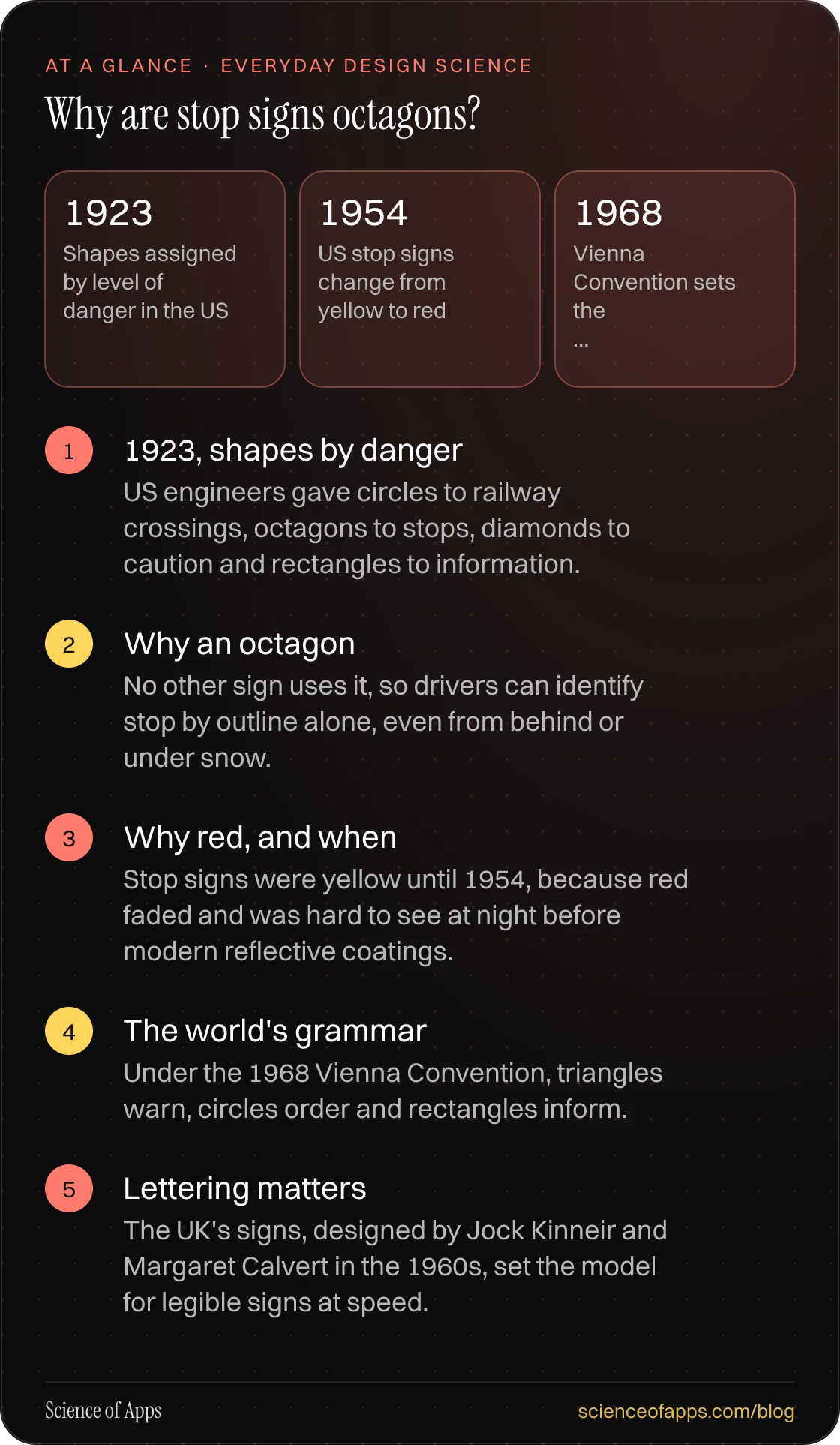

By Quick answer: Why are stop signs octagons?
- 1923, shapes by danger — US engineers gave circles to railway crossings, octagons to stops, diamonds to caution and rectangles to information.
- Why an octagon — no other sign uses it, so drivers can identify stop by outline alone, even from behind or under snow.
- Why red, and when — stop signs were yellow until 1954, because red faded and was hard to see at night before modern reflective coatings.
- The world's grammar — under the 1968 Vienna Convention, triangles warn, circles order and rectangles inform.
- Lettering matters — the UK's signs, designed by Jock Kinneir and Margaret Calvert in the 1960s, set the model for legible signs at speed.
Key takeaways
- Road signs use a layered code: shape first, then colour, then symbol, then words. Each layer works at a greater distance than the next.
- The octagon was chosen precisely because it is rare: a unique silhouette cannot be confused with anything else.
- Sign colours changed when materials allowed: red stop signs needed fade-resistant, reflective finishes.
- Symbols replaced words on most international signs so drivers who don't read the local language still understand them.
- The same layered code works in interfaces: shape and position should communicate before the label is read.
Picture a stop sign at a junction at dusk, half hidden by a tree, splashed with mud, with the letters too small to read yet. You still know what it is. That is not luck: it is a design decision made by a group of American highway engineers in 1923, and refined by committees in London, Geneva and New Delhi ever since. Road signs are the most tested public communication system in the world, read by billions of people at 50 to 120 kilometres an hour. This post explains how they work, starting with the octagon.
Why stop signs are octagons
Stop signs are octagons so that drivers can recognise them from the shape alone. In the early 1920s, highway officials from Wisconsin, Minnesota and Indiana toured several states and reported to the Mississippi Valley Association of State Highway Departments in 1923 with a plan: classify sign shapes by the level of danger. According to the US Federal Highway Administration, round signs warned of railway crossings, the greatest danger; the octagon marked the next level, stopping at intersections; diamonds meant ordinary caution; and rectangles gave directions and rules1.
There was a practical logic too. Circles and octagons required the most cutting and created the most waste, so they were reserved for the fewest installations. And because roads were rarely lit, the FHWA notes, the reasoning was that drivers would respond to a sign's shape even when they could not see its letters1.
- Shapes assigned by level of danger in the US
- 1923
- US stop signs change from yellow to red
- 1954
- Vienna Convention sets the international sign grammar
- 1968
- A silhouette no other sign uses
- 8 sides
Why stop signs were once yellow
The first stop signs were not red. In 1924 a US national safety conference proposed red for stop, but the American Association of State Highway Officials rejected red because of its poor visibility at night and recommended yellow for all danger and caution signs, including stop1. For three decades American stop signs were black letters on yellow octagons.
The change came in the 1954 revision of the Manual on Uniform Traffic Control Devices, when new fade-resistant finishes that also reflected headlights at night made red practical. The same revision introduced the yield sign, then a black-on-yellow downward triangle reading YIELD RIGHT OF WAY1. Today the standard US stop sign, sign R1-1, is a red octagon with a white border and the word STOP, at least 30 inches across on most roads2.
Stop signs: one octagon, many languages
The world's sign grammar: triangles, circles and rectangles
Most of the world reads road signs with the same three-shape grammar, set by the 1968 Vienna Convention on Road Signs and Signals3. Britain's Department for Transport summarises it simply: circles give orders, triangles warn and rectangles inform4.
| Shape | Meaning | Typical colours | Example |
|---|---|---|---|
| Triangle, point up | Warning | Red border, white or yellow field | Bend ahead, children |
| Circle, red border | Prohibition | Red border, white field | No entry, speed limit |
| Circle, blue | Mandatory instruction | Blue field, white symbol | Turn left, cycle route |
| Octagon | Stop | Red field, white text | STOP |
| Triangle, point down | Give way / yield | Red border, white field | Give way |
| Rectangle | Information, direction | Blue, green, white or brown | Motorway, route, tourist |
Table: The international road sign grammar (Vienna Convention 1968; UK Department for Transport)
This is the law of similarity applied to a whole country: things that look alike are understood to work alike, so a driver who has learned one warning triangle can read every other one.
The United States never joined the Vienna system. It kept its 1920s grammar: yellow diamonds for warnings, white rectangles for rules and green for directions. India's system, published by the Indian Roads Congress, is close to the international one, with red-bordered triangles and circles and blue or green information boards6.

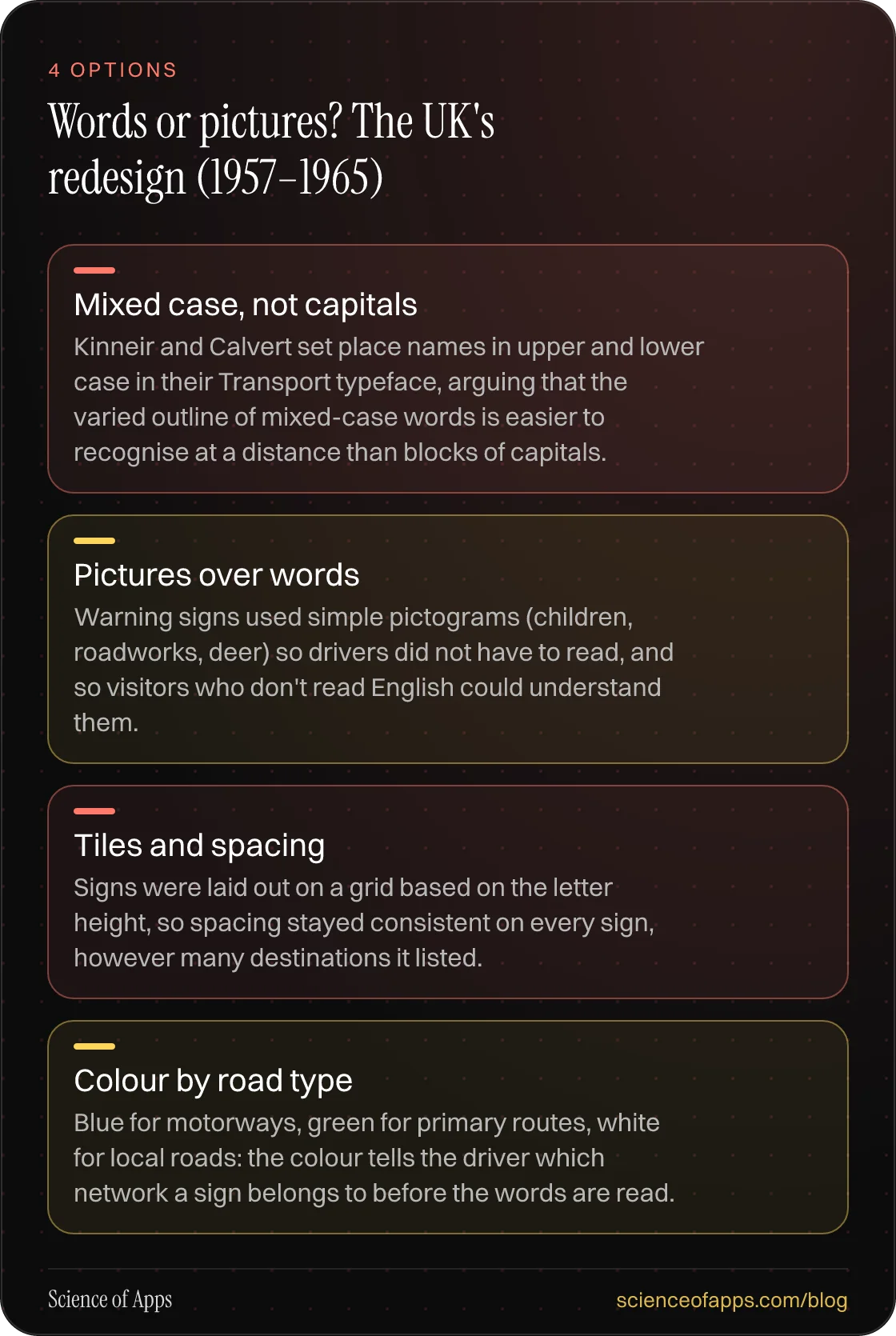

Words or pictures? The UK's redesign (1957–1965)
Britain's signs are a landmark of information design because two designers rebuilt the system from first principles. In the late 1950s, Jock Kinneir and his former student Margaret Calvert were asked to design signs for the first motorways; the government's Worboys Committee then extended their approach to all roads in its 1963 report5.
.jpg)
.svg)
Their decisions are still the reference for legible signs:
Mixed case, not capitals
Kinneir and Calvert set place names in upper and lower case in their Transport typeface, arguing that the varied outline of mixed-case words is easier to recognise at a distance than blocks of capitals.
Pictures over words
Warning signs used simple pictograms (children, roadworks, deer) so drivers did not have to read, and so visitors who don't read English could understand them.
Tiles and spacing
Signs were laid out on a grid based on the letter height, so spacing stayed consistent on every sign, however many destinations it listed.
Colour by road type
Blue for motorways, green for primary routes, white for local roads: the colour tells the driver which network a sign belongs to before the words are read.

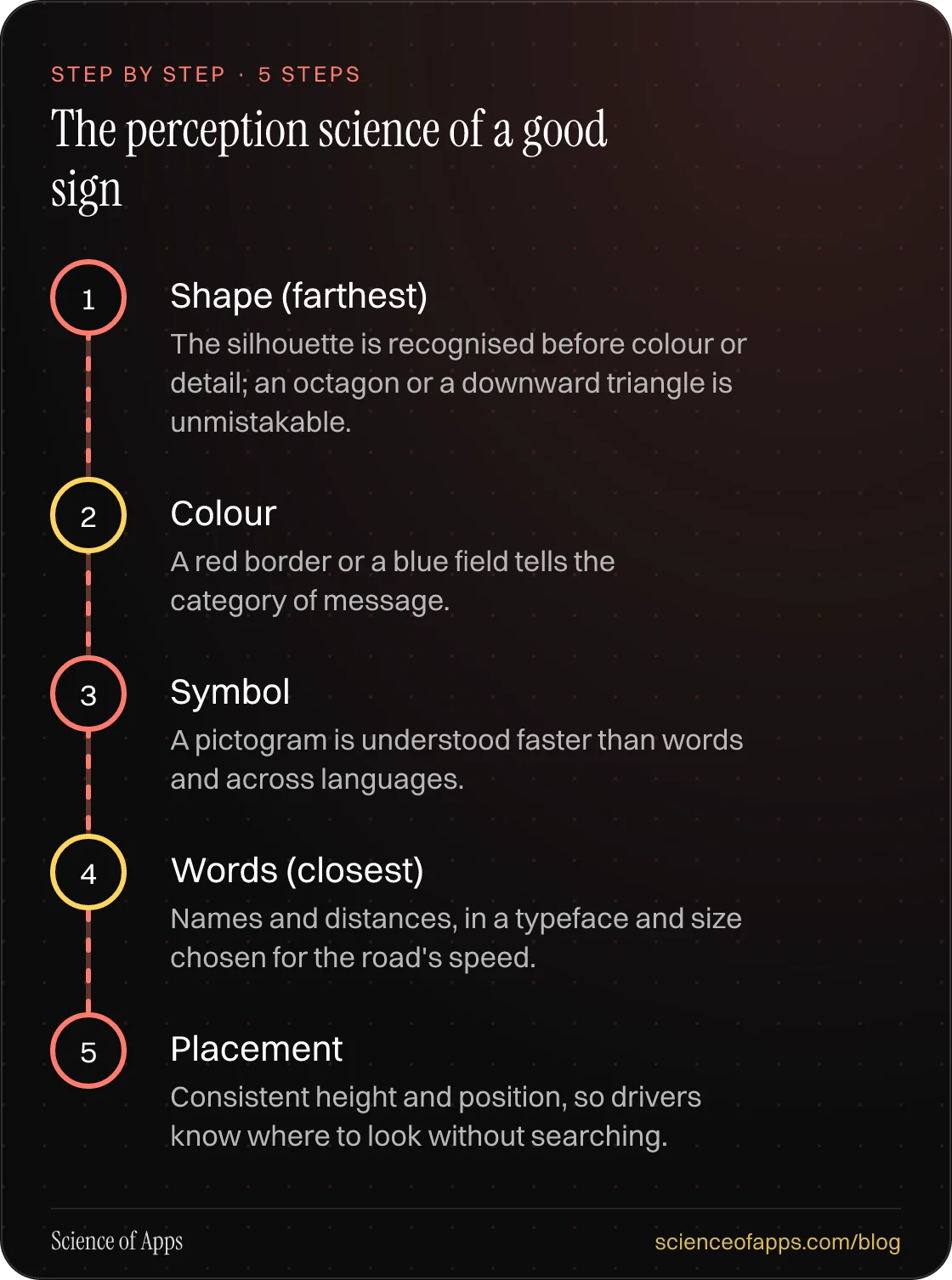

The perception science of a good sign
A good road sign works in layers, each readable from further away than the next.
- Shape (farthest) — the silhouette is recognised before colour or detail; an octagon or a downward triangle is unmistakable.
- Colour — a red border or a blue field tells the category of message.
- Symbol — a pictogram is understood faster than words and across languages.
- Words (closest) — names and distances, in a typeface and size chosen for the road's speed.
- Placement — consistent height and position, so drivers know where to look without searching.
The layers also give redundancy. If mud hides the word, the octagon still says stop; if colour vision is limited, the shape still carries the message. Designers call this redundant coding, and it is why road signs work for nearly everyone.

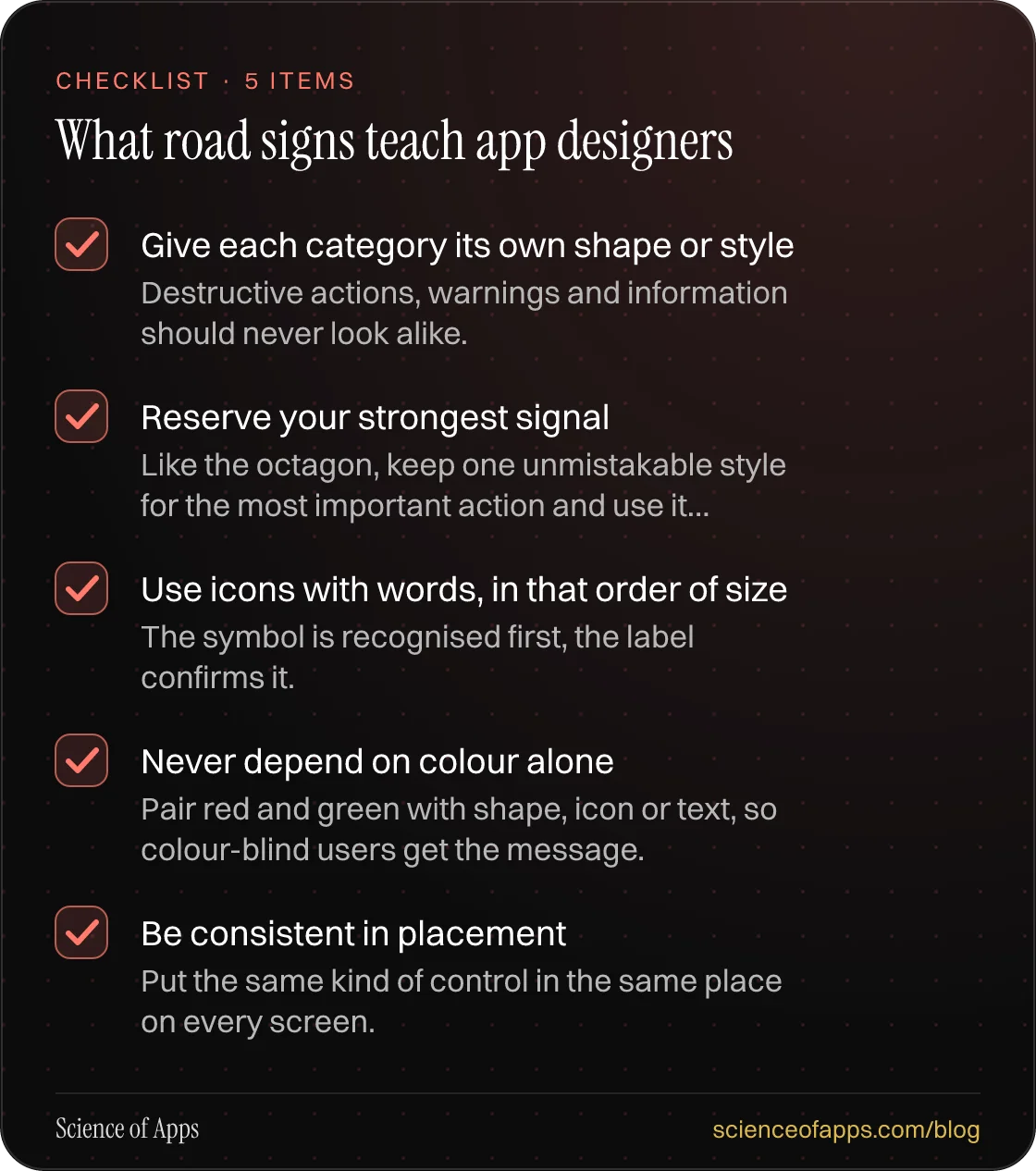

What road signs teach app designers
Interfaces have the same problem as roads: people glance, they don't read, and they are often distracted. The road sign approach translates directly.
- Give each category its own shape or style — destructive actions, warnings and information should never look alike.
- Reserve your strongest signal — like the octagon, keep one unmistakable style for the most important action and use it nowhere else.
- Use icons with words, in that order of size — the symbol is recognised first, the label confirms it.
- Never depend on colour alone — pair red and green with shape, icon or text, so colour-blind users get the message.
- Be consistent in placement — put the same kind of control in the same place on every screen.
These ideas sit behind several Laws of UX, and checking them on your own product is part of a mobile app UX audit.
How we researched this
The US history comes from the Federal Highway Administration's own history of the MUTCD and the current manual. International rules come from the text of the 1968 Vienna Convention; British practice from the Department for Transport and the 1963 Worboys report, which is freely available. Sign images are official designs reproduced from Wikimedia Commons, credited under each. Last reviewed October 2026.
Frequently asked questions
Why are stop signs red?
Red has meant stop since railway signalling, and US engineers wanted it for stop signs from 1924. But early red paints faded and were hard to see at night, so stop signs were yellow with black letters until the 1954 revision of the US traffic manual, when fade-resistant, reflective red finishes became available.
Why are warning signs triangles?
Under the 1968 Vienna Convention on Road Signs and Signals, used across Europe, much of Asia and Africa, warning signs are equilateral triangles with a red border, prohibitions and orders are circles, and information signs are rectangles. In the United States warnings are yellow diamonds instead, a system that dates from the 1920s.
Who designed the UK's road signs?
Jock Kinneir and his former student Margaret Calvert designed the system introduced on British roads from the late 1950s to the 1960s, following the 1963 report of the Worboys Committee. They created the Transport and Motorway typefaces and many of the pictograms, including the children crossing and roadworks signs, which were copied around the world.
What shape is a give way or yield sign?
A downward-pointing triangle. The point-down orientation makes it distinguishable from upward warning triangles, and, like the octagon, it can be recognised from behind. In the US it was introduced in 1954 as a black-on-yellow sign reading YIELD RIGHT OF WAY and later became red and white.
Are Indian road signs different?
India follows a system close to the international one, set out by the Indian Roads Congress in its code of practice for road signs: mandatory signs are mostly red-bordered circles, warning signs are red-bordered triangles and information signs are blue or green rectangles. Stop signs are red octagons, often with text in a regional language as well as English.
Why do stop signs say STOP in English in many countries?
The Vienna Convention allows the word STOP in English, or the equivalent in the national language, on its octagonal stop sign. Many countries chose the English word for consistency for international drivers. Others, such as Japan, use a downward triangle with the local word instead.
Sources
- US Federal Highway Administration — History of the MUTCD
- US Federal Highway Administration — MUTCD 2009, Chapter 2B: Regulatory signs
- UNECE — Convention on Road Signs and Signals (Vienna, 1968)
- UK Department for Transport — Know your traffic signs
- Ministry of Transport (UK) — Traffic signs: report of the committee on traffic signs for all-purpose roads (Worboys report, 1963)
- Indian Roads Congress
- Checked October 25, 2026. Figures that change — fees, salaries, prices — are reviewed every six months; if something is out of date, tell us.
