The London Tube map:
why it isn't to scale

The Tube map isn't to scale because underground, the only things a passenger needs are the order of the stations and the places to change trains. Distances and street positions are irrelevant when you can't see out of the window. Beck's insight was to draw a diagram of connections instead of a map of geography.

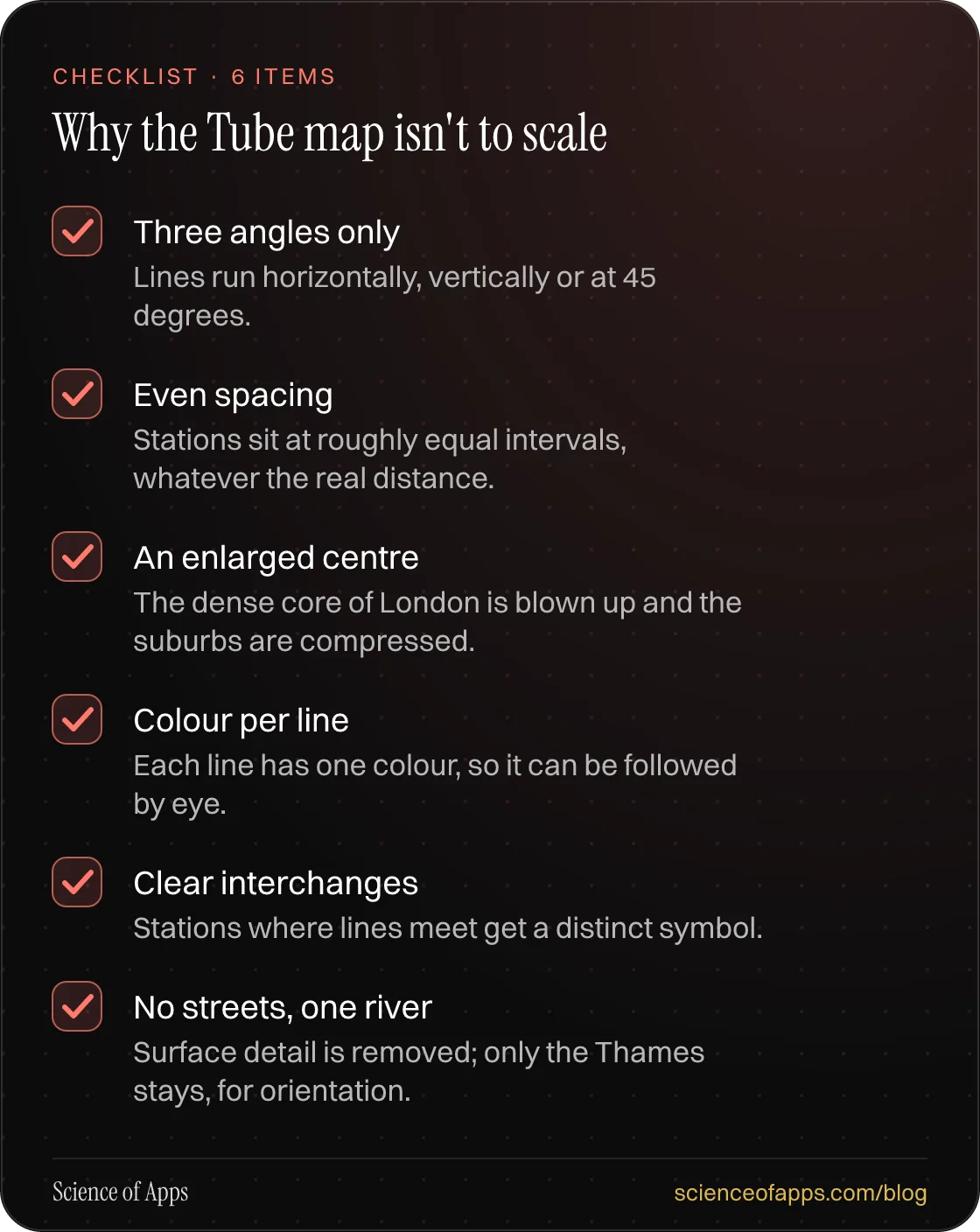

His rules, still followed today:

• Three angles only — lines run horizontally, vertically or at 45 degrees.
• Even spacing — stations sit at roughly equal intervals, whatever the real distance.
• An enlarged centre — the dense core of London is blown up and the suburbs are compressed.
• Colour per line — each line has one colour, so it can be followed by eye.
• Clear interchanges — stations where lines meet get a distinct symbol.
• No streets, one river — surface detail is removed; only the Thames stays, for orientation.

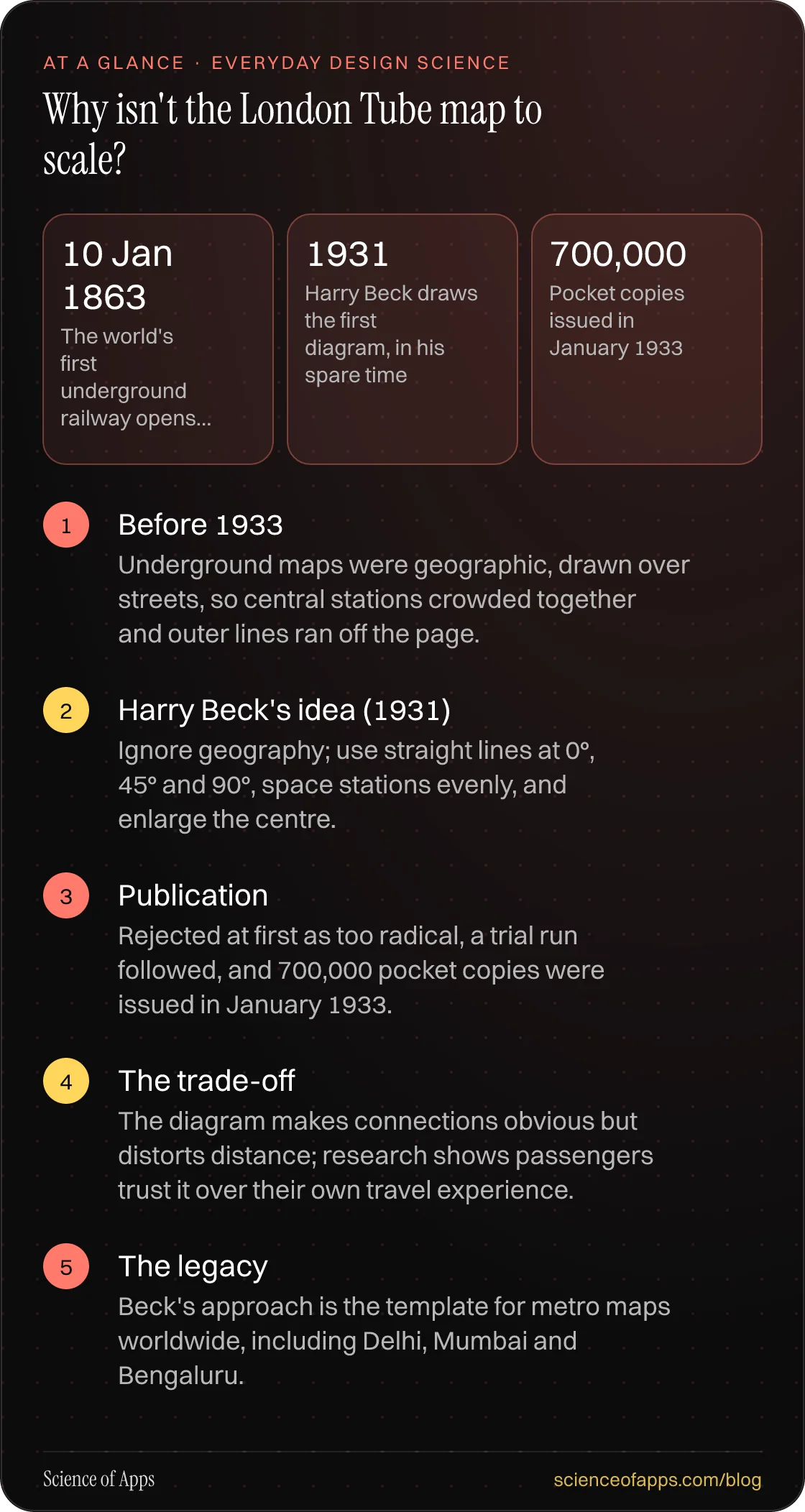

The world's first underground railway opens in London

10 Jan 1863

Harry Beck draws the first diagram, in his spare time

1931

Pocket copies issued in January 1933

700,000

How much more map distance sways route choice than travel time

2×

London's Underground began on 10 January 1863, when the Metropolitan Railway opened between Paddington and Farringdon, with steam locomotives running in shallow tunnels. By 1908 several competing companies ran lines, and they published a combined map for the first time. It was geographic: lines were drawn over the shapes of streets, so the centre was a tangle and stations at the ends were squeezed into the corners⁶.

From the mid-1920s, the draughtsman F. H. Stingemore removed the streets and compressed the outer areas to fit the page⁷. It was a step towards abstraction, but lines still bent as the tunnels did, and as the network pushed into the suburbs the problem got worse: show the long outer lines and the centre became unreadable; show the centre and the suburbs fell off the page.

Beck's solution was to stop pretending the drawing was a map at all. He is often said to have borrowed the look of electrical wiring diagrams from his work; whatever the inspiration, he turned the network into a system of straight lines, fixed angles and evenly spaced stations, with the centre enlarged so that interchanges could be read.

The Underground's publicity department turned him down in 1931 as too radical. Beck kept refining the design, a small trial print run followed, and in January 1933 London Underground issued it as a pocket map in an edition of 700,000. Passengers took to it immediately. English Heritage notes that he is thought to have been paid five guineas (£5.25) for the original design, and that the 1933 original is held by the London Transport Museum².

Beck went on revising the map until about 1960, when the Underground gave the work to another designer, Harold Hutchison, in a dispute Beck felt bitterly. His approach survived every redesign since. The current map, published by Transport for London, still follows his grammar while showing far more: the Overground, the DLR, trams, the Elizabeth line (opened through central London on 24 May 2022) and step-free access¹.

Yes, measurably. In a study published in 2011, the planning researcher Zhan Guo analysed London Underground passenger survey data from 1998 to 2005 and compared the distance between stations on the Tube map with actual travel time. Passengers' route choices responded to map distance about twice as strongly as to real travel time³. The effect shrank with experience but never disappeared: even people who rode the Tube five or more days a week trusted the map over what they had lived through⁴.

Guo also found that the way interchanges are drawn affected decisions. Where a change of trains is drawn as a single dot, people treat it as easy; where it is drawn as a long connecting link, they avoid it, whatever the walk actually involves. A diagram's choices become the passenger's behaviour.

Beck's diagram became the template for transit maps everywhere. New York tried a strict geometric diagram by Massimo Vignelli in 1972; New Yorkers, who navigate above ground by the street grid, complained that it bent geography too far, and the city returned to a more geographic map in 1979. India's metros, including Delhi, Mumbai and Bengaluru, use Beck-style diagrams with line colours, fixed angles and interchange symbols.

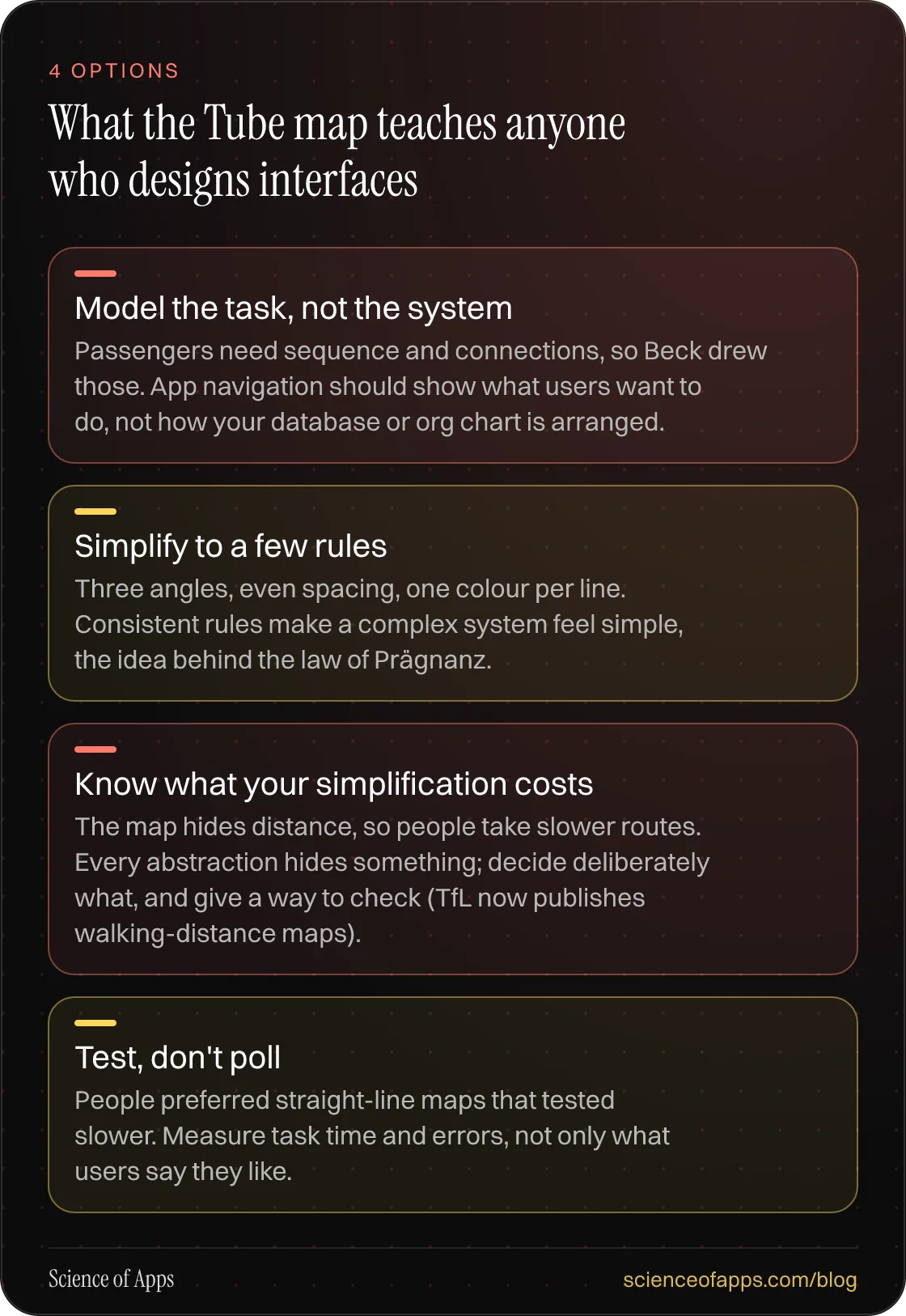

The Tube map is the clearest example of a design principle that applies to every app: show people the structure they need for their task, not a literal picture of the system.
